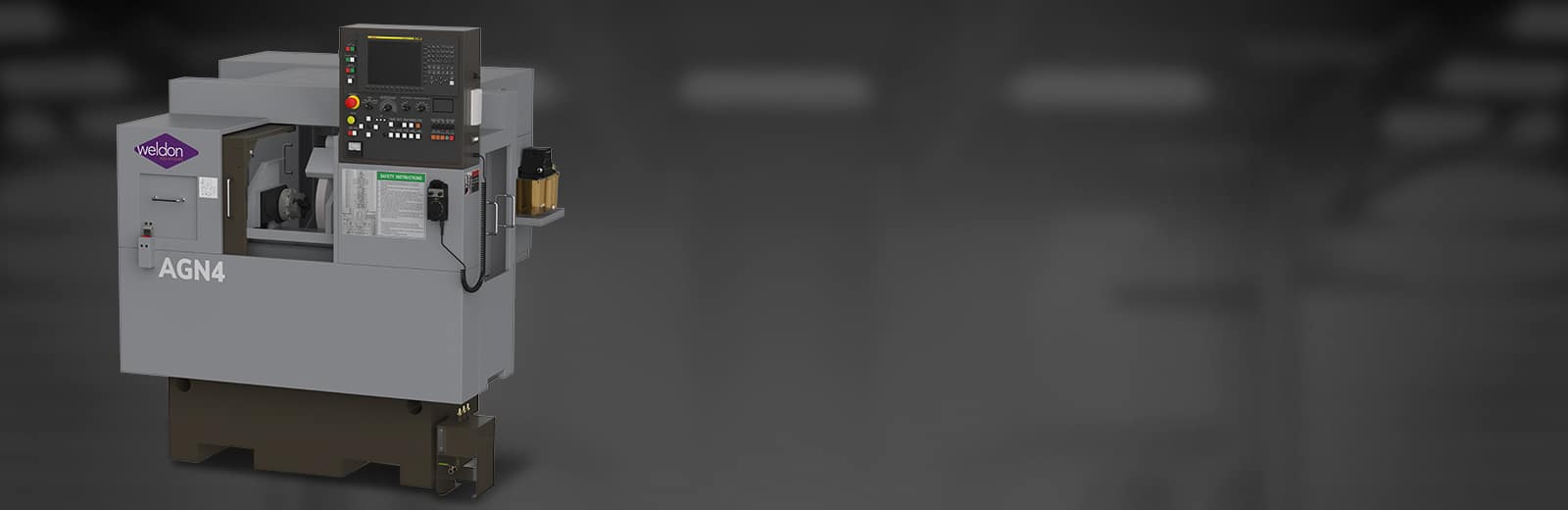

AGN4
High precision small part OD Grinder

The AGN4 has been designed to produce high precision small parts and is capable of performing plunge, contour, and traverse grinding operations. This compact machine occupies only 30 square feet of floor space, but its standard configuration makes it adaptable for factory automation. The fully enclosed grinder is available with either a straight or 30° angular wheelhead.

The grinder is equipped with a combination live/dead spindle workhead for versatility. Highly rigid hydrodynamic wheel spindle bearings assure superior accuracy and smooth surface finishes.

A FANUC CNC control is standard on the AGN4. Available options include an automatic loader, in-process OD gauge, automatic lateral locator, and various wheel dressers.

Download Brochure

FEATURES

  • FANUC model 0i TD CNC Control

  • Cast iron machine base

  • Vee & flat pressurized way system

  • Combination live & dead spindle workhead

  • Workhead mounted diamond holder

  • Servo work drive

  • Hydromatic wheel spindle bearings

  • Power operated tailstock

  • 14″ X 2″ wheel guard capacity

  • Full enclosure

  • Variable speed wheel drive with dynamic braking

  • Work area lighting

  • Workhead mounted diamond adapter
