GOLD OD/ID GRINDER
Ultimate versatility with Non-Round capabilities

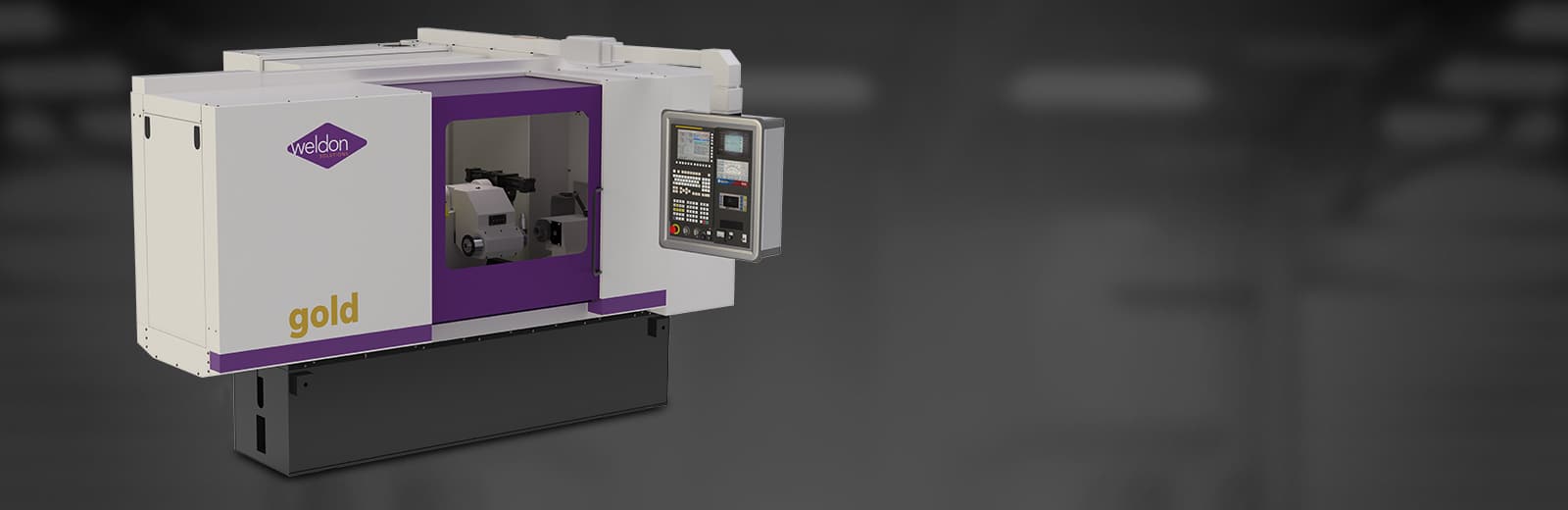

The 1632 Gold and 1612 Gold are the ultimate in CNC cylindrical grinders with OD/ID and non-round capabilities. These machines can automatically grind diameters, tapers, chamfers, radii, shoulders, and contours in one set-up and one continuous operation. The Gold grinders feature an innovative shear damping base design which provides superior damping, greater thermal stability, and improved static and dynamic stiffness.

The two models are customized to fit specific applications and are differentiated by a 12″ or 32″ between centers length and corresponding footprint. Both feature a FANUC CNC control. Available options include a programmable “C” axis work-head for non-round grinding, a power-operated swingdown ID system, and various wheel dressers.

Download Brochure

FEATURES

  • FANUC model 32i B CNC Control with Color LCD

  • 160 meters part program storage, 63 PGMS

  • Shear Damper machine base

  • Precision cross-roller linear way system

  • Low inertia break-away coupling, X axis

  • Automatic Trabon lubrication system

  • Heavy-duty live spindle workhead, 6A2, #5 MT center

  • Servo work drive, 5HP, 0 to 600 RPM

  • Full Enclosure

  • Variable speed wheel drive with dynamic braking

  • Air conditioned electrical panel

  • Work area lighting

  • Workhead mounted diamond adapter and single point diamond

  • Wheel guard and hood assembly

  • Coolant plumbing and bed-wash system

  • Grinding wheel and hub

  • Set-up tools

CASE STUDIES

GOLD 2-in-1 Steering Component Grinder
GOLD OD/ID C-Axis Non-Round Carbide Die Grinder
GOLD Rod Mill Roll Grinder
GOLD OD Punch Grinder
GOLD Tubing Roll Grinder
GOLD OD/ID Grinder for the Energy Industry
GOLD Automated 3-in-1 Steering Gear Grinder
GOLD OD/ID Aerospace Part Grinder
GOLD 3-in-1 Input Shaft Grinder
GOLD OD/ID Non-Round Grinder for Aerospace Bearings

Capacity

  • Maximum work swing: 16 “
  • Maximum distance between centers (1612): 12″
  • Maximum distance between centers (1632): 26″
  • Worktable travel (1612): 26″
  • Worktable travel (1632): 32″

Workhead

  • Bearings: Heavy-duty, preloaded precision anti-friction
  • Spindle nose (ASME Standard): 6″ A2
  • Center taper: #5 Morse
  • Through-hole diameter in spindle for draw bars and air tubes: 1.0625″
  • Spindle speed range is indefinitely variable and programmed by percentage w/ manual speed override located on operator control station: 0-800 rpm
  • Maximum runout: .000050″
  • Motor, FANUC AC servo drive: 5 hp

Wheelhead

Angular contact ball bearings which allow lateral loading while contouring with wheel edge

  • Motor: 15 hp, T.E.F.C.
  • Wheel speed variable RPM: 8,500 SFPM (nominal)
  • Maximum OD wheel diameter: 16″
  • Maximum wheel width: 3.0″

Tailstock

  • Center taper: #5 Morse
  • Quill retraction (manual lever): 1.5″

Table Drives

  • Fanuc AC digital servo drives: 1.9 HP
  • Command resolution, least programmable increment: 0.000010″
  • Position feedback resolution: 0.0000010″
  • Precision ground preloaded ballscrews on Z-axis
  • Way construction: hardened and ground cross rails
  • Bearings, preloaded: cross-roller

Grinding Wheel

  • Maximum OD Wheel diameter (S-2, A-2): 20″
  • Maximum OD Wheel diameter (S-3, A-3): 24″
  • Maximum wheel width (S-2, A-2): 4.0″
  • Maximum wheel width (S-3, A-3): 5.0″

Worn Wheel Size:

  • S-2: 12″
  • S-3: 16″
  • A-2: 14.5″ (wheel width dependent)
  • A-3: 19.5″ (wheel width dependent)

Lubrication

  • Wheel spindle: Permanent grease-packed
  • Workhead spindle: Permanent grease-packed
  • Ballscrews and rollerscrew: Automatic lube oil
  • Ways: Automatic lube oil
  • Safety detect interlock to prevent cycling of operation if low air pressure or low oil level is sensed
  • Automatic programmed cycle to lubricate machine at start up

Electrical Specs

  • Complete tools and electrical equipment wired in accordance with IEC electrical standards for metalworking machine tools
  • Standard Voltage: 460 volts, 3-phase, 60 Hertz, AC
  • Any other voltage must be referred to the factory for price and delivery

Pneumatics

  • Air moisture: 70° F. dew point maximum
  • Air pressure: 80 PSI
  • Air volume: 5 SCFM
  • Note: System requires a filtered and dry air source

Coolant System

  • Machine is set up to funnel coolant out to an optional coolant filter or tank system via sheet metal trough
  • All necessary piping and solenoids for coolant control from he machine control are provided

Machine Dimensions and Construction

  • Width (1612): 103″
  • Width (1632): 131″
  • Depth: 127“
  • Depth for shipping, pendulum swung in: 93″
  • Height: 85“
  • Weight: 15,500 lbs.
  • Construction: Welded steel Shear Damper™
  • Foundation: 6″ reinforced concrete floor is recommended
  • Three-point anti-vibration suspension system requiring no floor attachment

CNC Control Specifications - FANUC 32i-BT

  • Manual pulse generator
  • Full linear and circular contouring and positioning capabilities
  • FANUC and AC digital servo systems
  • Direct RPM programming or constant surface feet per minute
  • 10″ high-resolution color LCD
  • Macro Subroutines
  • Automatic recognition of EIA or ISO coding
  • Decimal point programming
  • Absolute / incremental programming software over travel checking
  • RS 232 / Ethernet
